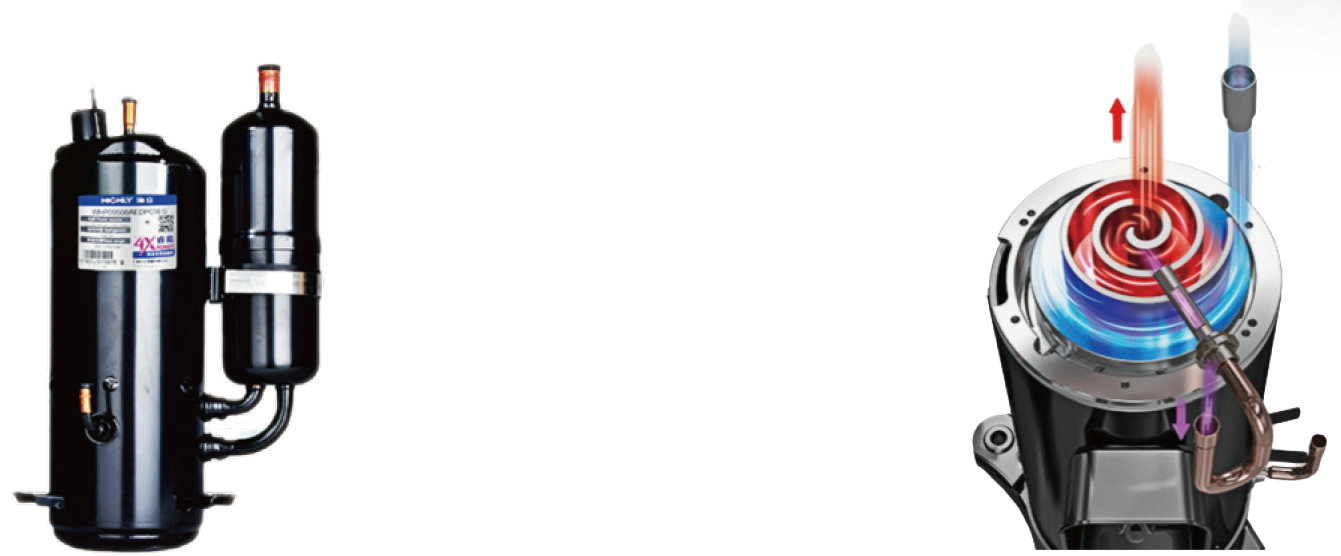

Compressor
DC inverter type compressor.

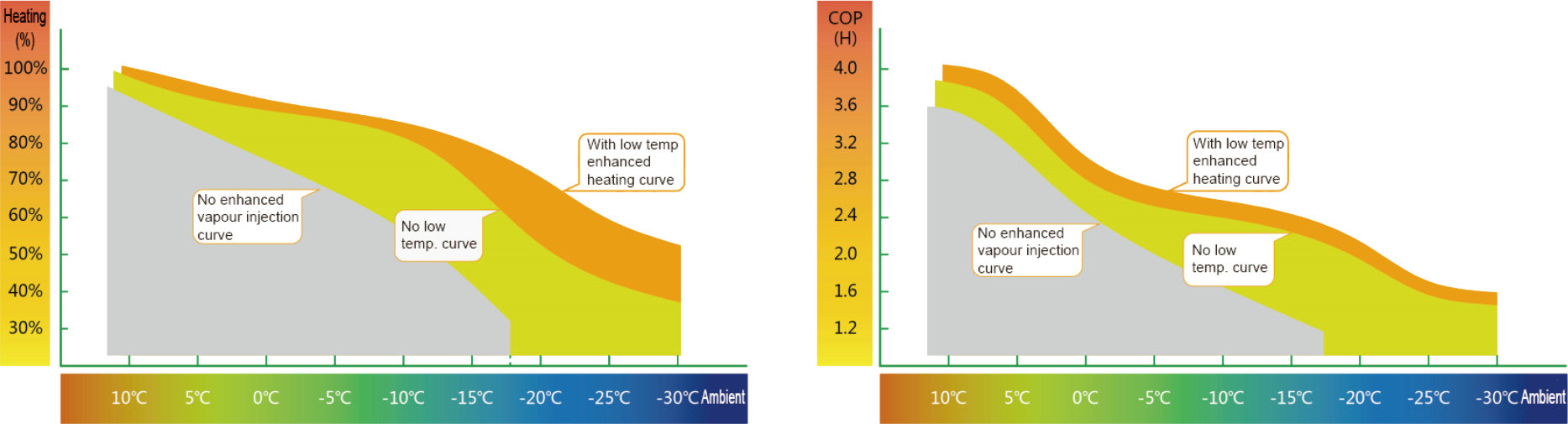

EVI technology
Enhanced vapor injection technology, heat pump can work -30oC ambient temperature.
Refrigerant
R410A refrigerant, more environmental.
Stable and reliable

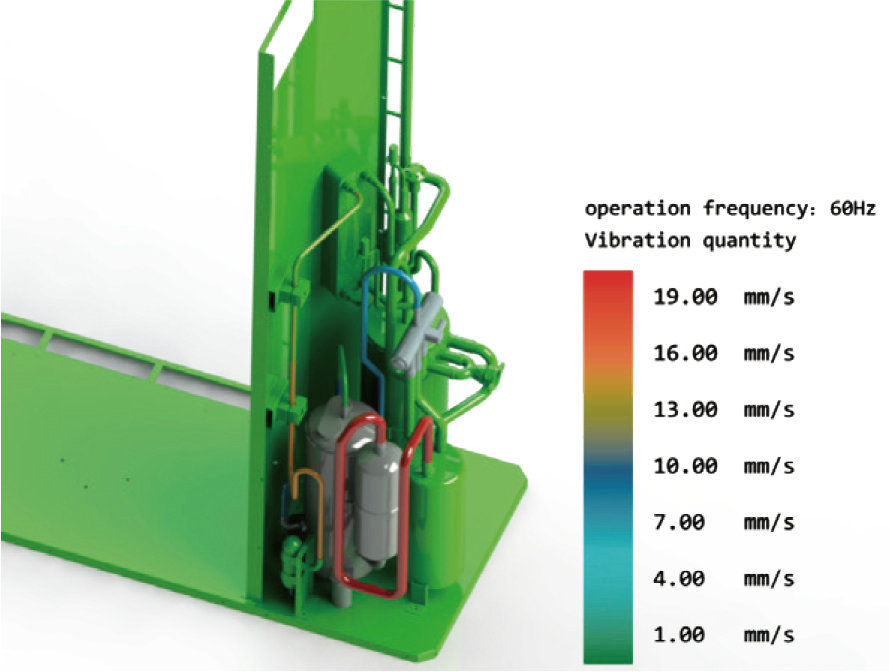

Simulation optimization + test verification, more stable and reliable.
Compact design

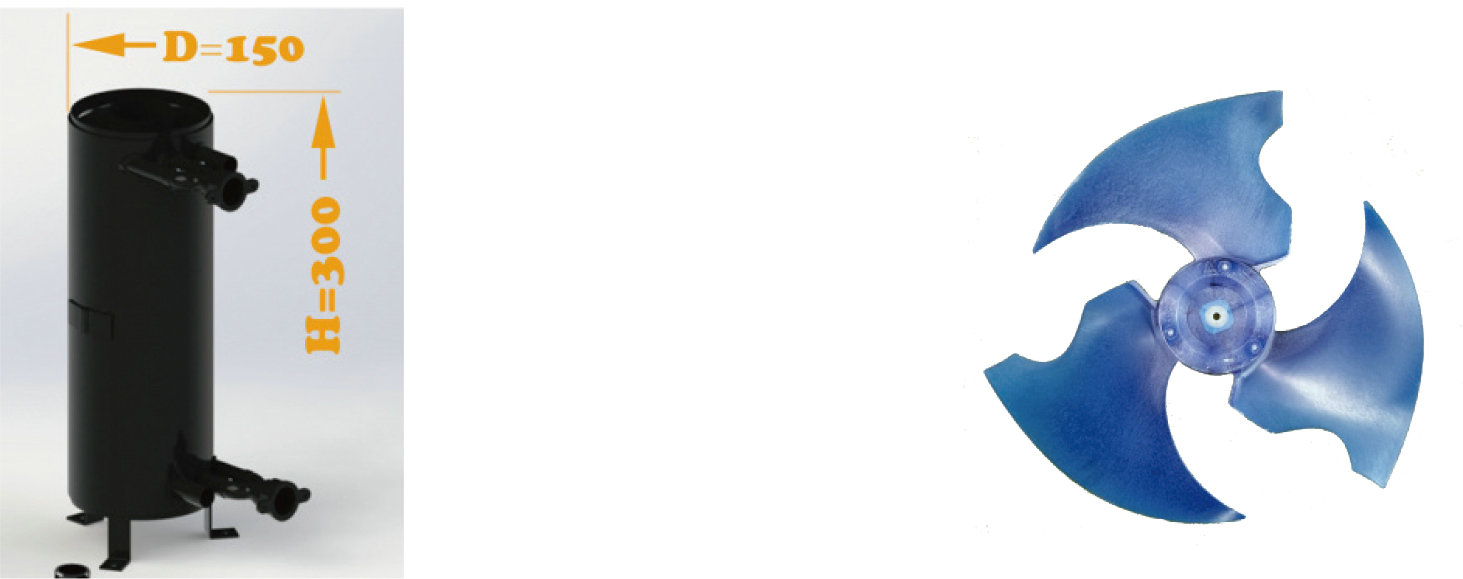

Use tank type heat exchanger.
Low noise fan
For lower ambient temp working

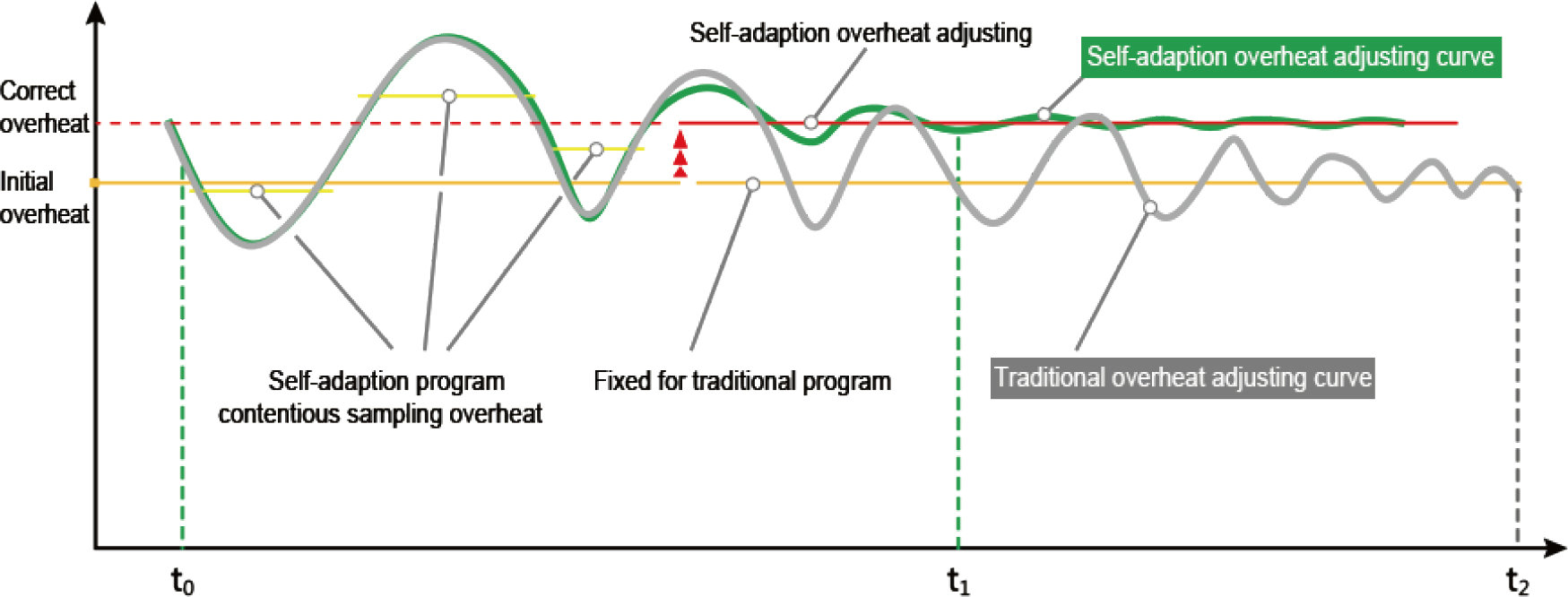

Professional control, more reliable, adaptive control for EXV

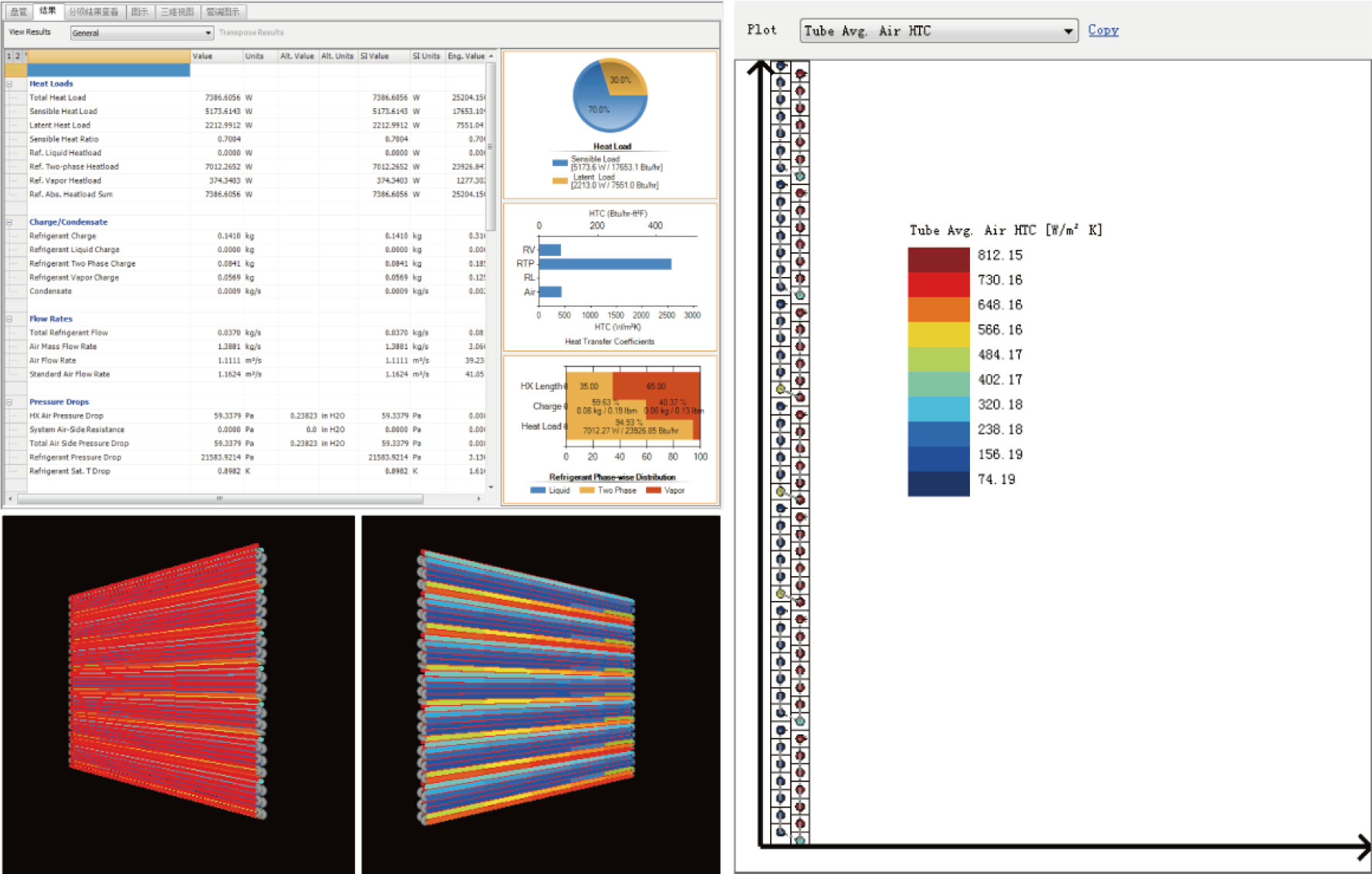

Heat exchanger design
More safety
Over 7 protections.

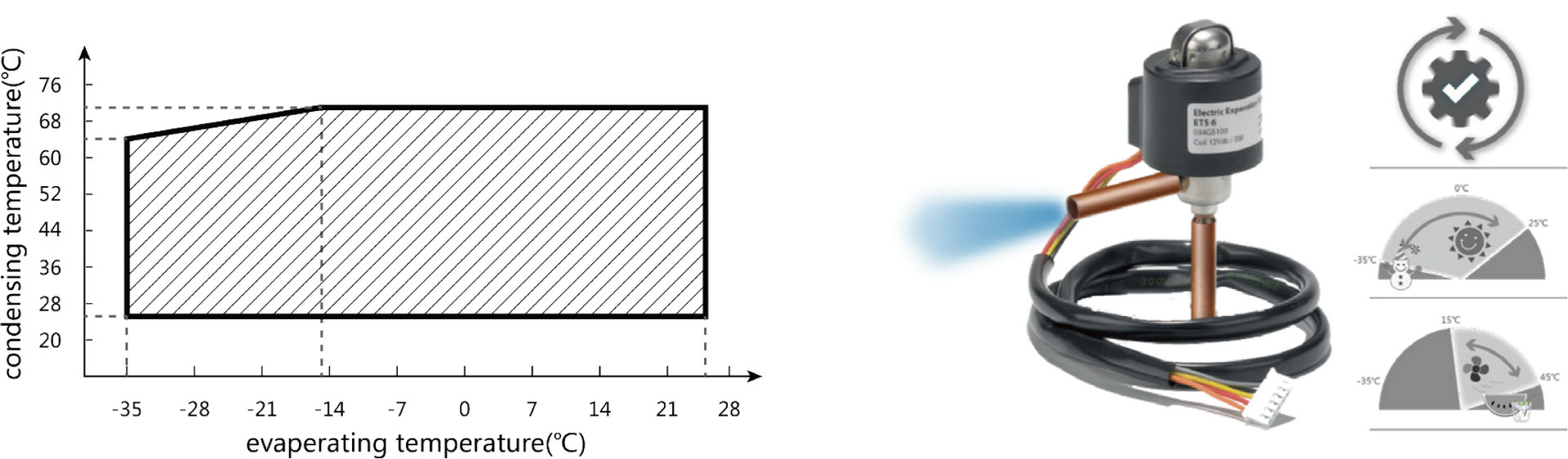

Reliable EXV
Model |
10 |
14 |
17 |
20 |
|||
Ambient temperature DB/WB |
Hot water |
Capacity |
Unit |
Packaged type |
|||
7oC/6oC |
41oC |
Heating |
kW |
11.2 |
18.9 |
19.8 |
20.7 |
Power input |
kW |
3.1 |
5.4 |
5.8 |
6.4 |
||
-12oC/-14oC |
41oC |
Heating |
kW |
7 |
11.9 |
12.9 |
13.9 |
Power input |
kW |
2.95 |
4.9 |
5.2 |
5.6 |
||
-20oC/–oC |
41oC |
Heating |
kW |
5.9 |
9.6 |
10.7 |
11.2 |
Power input |
kW |
2.9 |
4.6 |
5.3 |
5.5 |
||
35oC/— |
7oC |
Cooling |
kW |
8.7 |
12.5 |
13.5 |
14.9 |
Power input |
kW |
3.0 |
4.4 |
4.8 |
5.6 |
||
Standard heating COP/IPLV |
W/W |
2.37/2.83 |
2.43/2.86 |
2.48/2.87 |
2.48/2.88 |
||
Max power input |
kW |
5.5 |
8.5 |
8.5 |
8.5 |
||
Max working current |
A |
20 |
40 |
40 |
40 |
||
Compressor type/Brand |
DC inverter type/Highly |
||||||
Compressor quantity |
1 |
||||||
Fan |
Low Noise axial type |
||||||
Fan quantity |
1 |
2 |
2 |
2 |
|||
Heat exchanger |
Tank type |
||||||
Inlet/outlet water pipe size |
G1 |
G1 |
G1 |
G1 |
|||
Water flow rate |
m3/h |
1.5 |
2.14 |
2.32 |
2.56 |
||
Water resistance |
kPa |
22 |
42 |
49 |
57 |
||
Refrigerant |
Type |
R410A |
|||||
Charge amount |
kg |
4 |
5 |
5 |
5 |
||
Min/Max Ambient temp |
Cooling |
oC |
21-43 |
||||
Heating |
oC |
-30-21 |
|||||
Min/Max Hot water |
Cooling |
oC |
7-24 |
||||
Heating |
oC |
25-60 |
|||||
Min/Max working water pressure |
MPa |
0.05-1 |
|||||
Power supply |
220V/1/50Hz |
||||||
Dimension(L×W×H) |
mm |
1113x594x977 |
1113x594x1477 |
||||
Noise level |
dB(A) |
64 |
66 |
66 |
66 |
||
Net weight |
kg |
120 |
160 |
* Please leave your message!We will send detail technical info and quotation to you!
